数量: | |
---|---|
南京海思

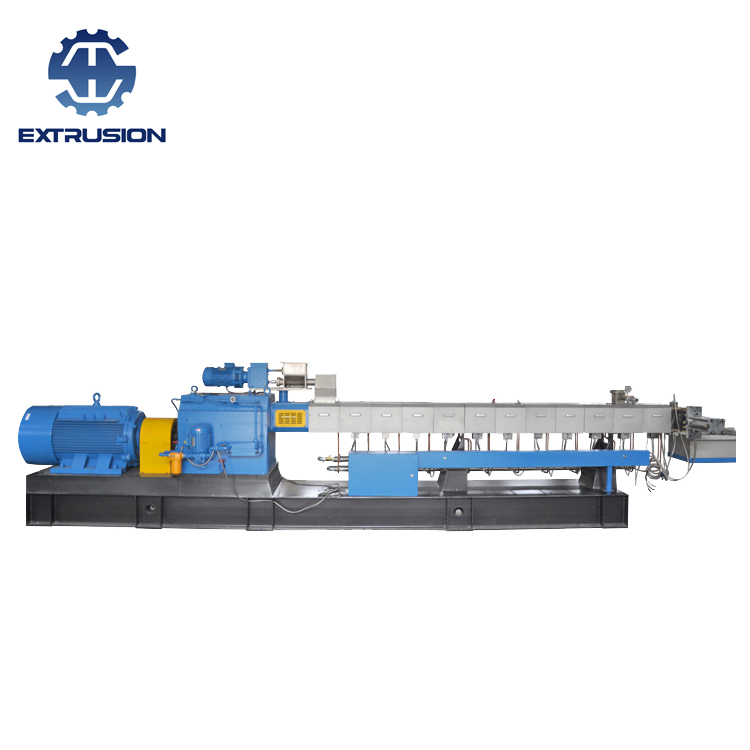

TSE-65B
90KW
600rpm
36
双螺杆双路喂料
继电器逻辑控制
200-350
整机质保一年长期供应备品备件
设备型号 Mode | 螺杆直径 D(mm) | 螺杆长径比L/D | 螺杆转速 N(r/min) | 主电机功率P(kw) | 螺杆扭矩 T(N.m) | 扭矩 T/N⊃3; | 典型作业生产能力Q(kg/h) |
TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 7.5 | 5.5-10 |
TSE-30A | 31 | 32-48 | 500 | 11 | 105 | 5.9 | 5-30 |
TSE-30B | 600 | 15 | 119 | 6.7 | 5-40 | ||
TSE-35A/B | 35.6 | 32-52 | 600 | 15-22 | 119 | 4.4 | 20-60 |
TSE-40A | 41 | 32-64 | 400 | 22 | 263 | 6.4 | 65-110 |
TSE-40B | 41 | 32-52 | 600 | 30 | 239 | 5.8 | 90-150 |
TSE-50A/B | 50.5 | 32-52 | 500 | 45-55 | 430 | 5.4 | 135-270 |
TSE-65A | 62.4 | 32-52 | 400 | 75 | 895 | 6.3 | 180-250 |
500 | 75 | 716 | 5.1 | 180-270 | |||
TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 5.1 | 200-300 |
TSE-65C | 62.4 | 32-64 | 600 | 110 | 875 | 6.2 | 220-350 |
TSE-75A | 71 | 32-56 | 400 | 90 | 1074 | 4.9 | 250-350 |
500 | 110 | 1050 | 4.8 | 300-420 | |||
TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
TSE-75C | 71 | 32-64 | 600 | 160 | 1273 | 5.8 | 400-600 |
TSE-75D | 71 | 32-64 | 600 | 200-250 | 1990 | 9.2 | 500-1000 |
TSE-95A | 93 | 32-64 | 500 | 250 | 2387 | 5.0 | 600-1000 |
TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 5.3 | 800-1200 |
TSE-135A | 133 | 32-64 | 500 | 750 | 7162 | 5.38 | 1500-2250 |
